Soteria Dimension Optical Smoke Detector – Specialist

FL6100-600APO

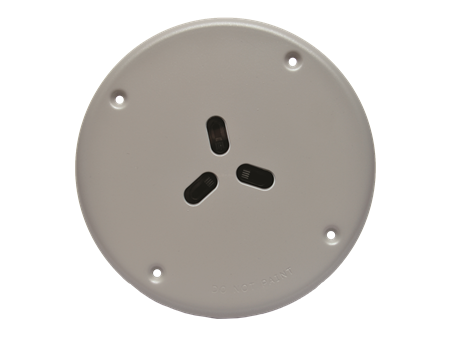

The Soteria Dimension Specialist Optical Detector is independently certified to DHF TS001 for anti-ligature use in specialist areas.

Low profile design
Utilises digital CoreProtocol communications
Compatible with Discovery and XP95 systems*
Integrated switchable isolator as standard
8-way DIL switch addressing
Drift compensation
FasTest® for quicker testing
Tricoloured LED status indicator
Comprehensively tested to exceed EN 54-7 standard
Ruggedized metal face plate which is secured with anti-tamper screws
Designed to meet the requirements of Ministry of Justice Specification STD/E/SPEC/038
Independently certified to DHF TS001 for anti-ligature use in specialist areas
*Note: Not all features may be available when Soteria devices are connected to an XP95 or Discovery fire control panel

Technical specification

General	Warranty 10 year
Mechanical	Colour Silver Weight 321g Materials housing Polycarbonate Materials terminals Nickel plated stainless steel Product diameter 170mm Product depth 36.45mm Detection principle Photo-electric light scattering. Product depth 1.44in Product diameter 6.69in
Conformance	Standards EN 54-7 EN 54-17 Approvals LPCB VdS CPR BOSEC Exova
Performance	Analogue value nominal 23 Analogue value (- tolerance) 0 Analogue value (+ tolerance) 4 Analogue value 23 +4/-0 Alarm level analogue value 55
Electrical	Protocol voltage 5 to 13V peak to peak Protocol voltage (max) 13V Protocol voltage (min) 5V Power-up surge current 1mA Maximum power-up time <20 seconds Quiescent current 1000μA Quiescent current tested at 24V dc Supply voltage (max) 35V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 35V dc Terminal functions L2 +L2 Loop in & out positive Terminal functions L1 in -L1 in Loop (isolated) negative Terminal functions L1 out Loop out negative Terminal functions +R +R Remote indicator positive connection Terminal functions -R -R Remote indicator negative connection Polarity L1 & L2 are polarity sensitive Sampling frequency Once per second
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature -20 to 55°C Operating temperature (max) 55°C Operating temperature (min) -20°C IP rating Value IP55 Operating temperature -4 to 131°F Operating temperature (max) 131°F Operating temperature (min) -4°F
