XPander Input/Output Module - Dual Channel

Name: XPander Input/Output Module - Dual Channel
Brand: XPander
SKU: XPA-IN-14012-APO

XPA-IN-14012-APO

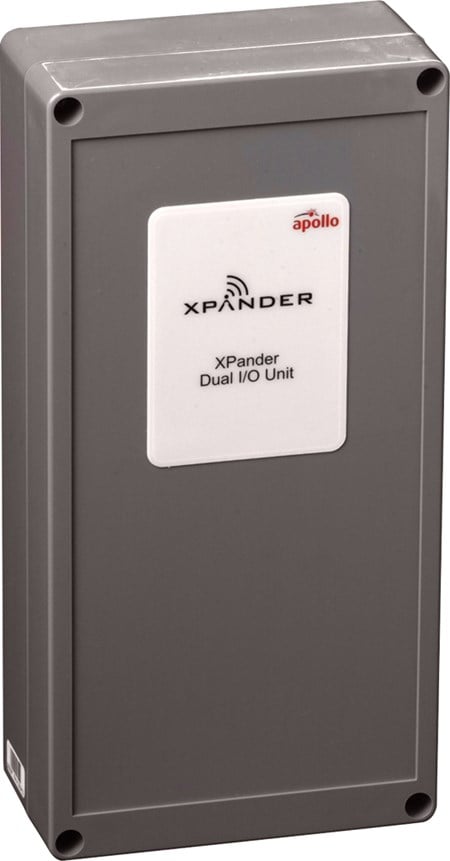

The XPander Input/Output Module is a radio based interface and offers two monitored input circuits and two relay outputs. It can be used for controlling fire doors, fire dampers, smoke vents and other fire engineering applications.

Wireless
Monitored switch circuit
Voltage-free contacts
Capable of switching up to 30V at 1A
Five-year battery life using standard AA alkaline batteries

Technical specification

General	Warranty 10 year
Mechanical	Colour Grey Weight 620g Materials housing ABS Product length 240mm Product width 120mm Product depth 60mm Product length 9.45in Product width 4.72in Product depth 2.36in
Conformance	Approvals CPR
Environmental	Humidity 0% to 95% (no condensation or icing) Humidity Note no condensation or icing Humidity (max) 95% RH Humidity (min) 0% RH Operating temperature -10 to 55°C Operating temperature (max) 55°C Operating temperature (min) -10°C Operating temperature 14 to 131°F Operating temperature (max) 131°F Operating temperature (min) 14°F
