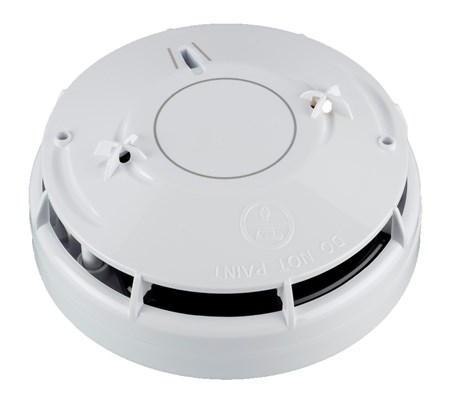

XP95A Multi-Criteria Detector (Smoke/Heat) - UL268 7th Edition

Name: XP95A Multi-Criteria Detector (Smoke/Heat) - UL268 7th Edition
Brand: XP95A
SKU: SA5050-350APO

SA5050-350APO

The XP95A Multi-Criteria Detector (Smoke/Heat) uses new photoelectric sensing technology, Purelight®, to detect smoke particles entering the chamber. It reduces the possibility of false alarms whilst increasing the reliability of detecting a real fire.

Fully approved to the latest UL268 7th Edition and FM standards
Purelight® optical technology provides enhanced smoke detection and false alarm management
Dual heat sensors for additional fire condition assurance
Backwards compatible with legacy XP95A systems
XP95 protocol compatible

Technical specification

Mechanical	Colour White Weight 83g Materials housing Polycarbonate Product diameter 100mm Product depth 38mm Product depth 1.5in Product diameter 3.94in
Conformance	Approvals FM UL ULC
Electrical	Protocol voltage 5 to 9V peak to peak Protocol voltage (max) 9V Protocol voltage (min) 5V Quiescent current 340μA Supply voltage (max) 28V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 28V dc
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature 0 to 55°C Operating temperature (max) 55°C Operating temperature (min) 0°C Operating temperature (min) 32°F Operating temperature (max) 131°F Operating temperature 32 to 131°F
