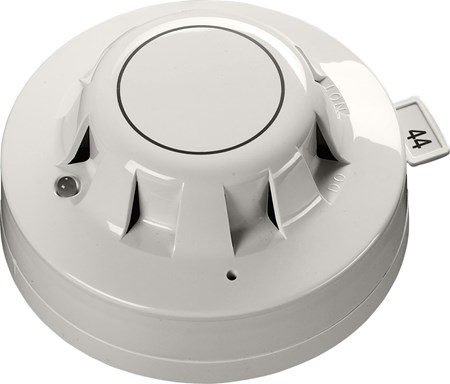

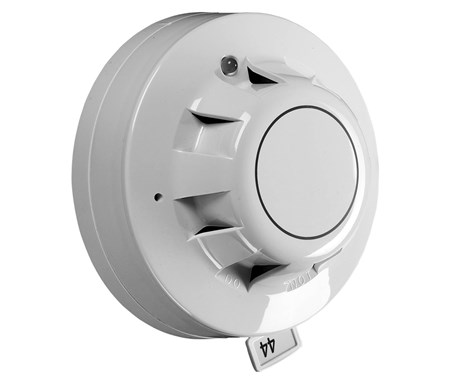

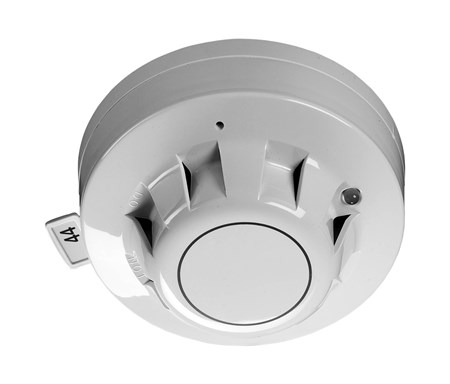

XP95 Optical Smoke Detector

Name: XP95 Optical Smoke Detector
Brand: XP95
SKU: 55000-620APO

55000-620APO

The XP95 Optical Smoke Detector uses the light scatter principle to quickly and effectively detect a range of slow burning and smouldering fires.

Reliable fire detection in areas with a wide temperature range from -20°C to +60°C
Ideal for escape routes
Unaffected by wind and atmospheric pressure
Insect resistant screen

Technical specification

General	Warranty 10 year Applications Escape routes Hotels Offices Restaurants Retail Bedrooms Medium to large buildings Fire Type Slow burning, smouldering fires
Mechanical	Colour White Sensor configuration Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. Weight 105g Materials housing Polycarbonate Materials terminals Nickel plated stainless steel Product length 42mm Product diameter 100mm Detection principle Photo-electric light scattering. Product length 1.65in Product diameter 3.94in
Conformance	Standards EN 54-7 Approvals FG CPR SBSC VdS BOSEC LPCB
Performance	Analogue value nominal 25 Analogue value (- tolerance) 7 Analogue value (+ tolerance) 7 Analogue value 25 +7/-7 Alarm level analogue value 55 Chamber type Chevron
Electrical	Protocol voltage 5 to 9V peak to peak Protocol voltage (max) 9V Protocol voltage (min) 5V Power-up surge current 1mA Maximum power-up time 4 seconds Status indicator - Alarm Red Status indicator - Fault Off Quiescent current 340μA Supply voltage (max) 28V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 28V dc Terminal functions L2 +L2 Loop in & out positive, double terminal Terminal functions L1 in -L1 in Loop in & out, double terminal Terminal functions +R +R Remote indicator positive connection Terminal functions -R -R Remote indicator negative connection Polarity L1 & L2 are polarity insensitive Battery powered No Sampling frequency Once per second
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature -20 to 60°C Operating temperature (max) 60°C Operating temperature (min) -20°C Storage temperature (max) 80°C Storage temperature (min) -30°C Storage temperature -30 to 80°C Effect of wind speed None Operating temperature -4 to 140°F Operating temperature (max) 140°F Operating temperature (min) -4°F
