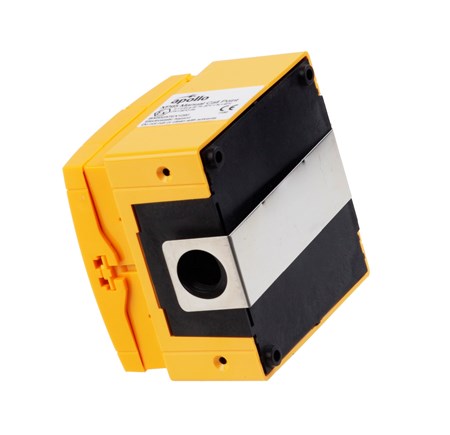

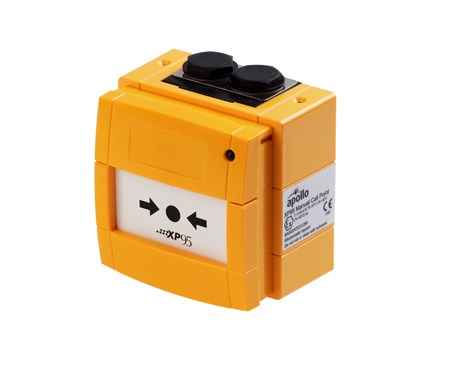

XP95 I.S. Manual Call Point - Yellow

Name: XP95 I.S. Manual Call Point - Yellow
Brand: XP95
SKU: 55100-942APO

This product is now obsolete

55100-942APO

The Manual Call Point is commonly used to manually control extinguishant release. The Manual Call Point is suitable for use in areas where explosive atmospheres are, or may be, present.

Suitable for intrinsically safe and weatherproof applications
Suitable for use on Zones 2, 1 & 0
XP95 & Discovery compatible

Technical specification

General	Warranty 3 year
Mechanical	Colour Yellow Weight 240g Materials housing Polycarbonate ABS Product length 97.5mm Product width 93mm Product depth 71mm Detection principle Operation of a switch. Key type KAC Manal Call Point test & reset key Product length 3.84in Product width 3.66in Product depth 2.8in
Conformance	Approvals BASEEFA
Electrical	Protocol voltage (max) 9V Protocol voltage (min) 5V Protocol voltage 5 to 9V peak to peak Power-up surge current 1mA Quiescent current 300μA Quiescent current tested at 24V dc Polarity L1 & L2 are polarity sensitive
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH IP rating Value IP67
