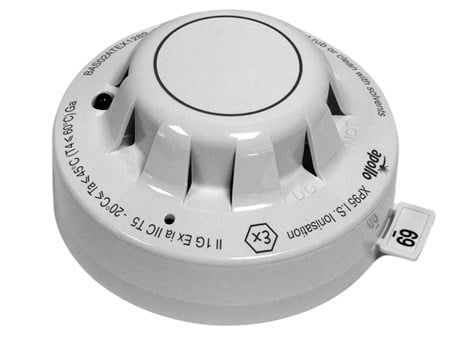

XP95 I.S. Ionisation Smoke Detector

This product is now obsolete and is replaced with the XP95 I.S. Heat Detector (A2S)

55000-540APO

Full details of the principles of operation and electrical description are published in the XP95 Engineering Product Guide. Information on the performance of XP95 in adverse environmental conditions is also given in this guide. XP95 IS detectors have the same operating characteristics as the standard versions.

Technical specification
General
Warranty
10 year
Applications
  • Car parks/loading bays
  • Hazardous areas
  • Medium to large buildings
  • Offshore platforms
  • Refineries
  • Warehouses
Fire Type
Fast burning, flaming fires
Mechanical
Colour
White
Sensor configuration
Twin compensating chambers using one single sided ionising radiation source.
Conformance
Approvals
  • BV
  • BASEEFA
  • BOSEC
  • LPCB
  • PESO (CCoE)
  • IECEx
  • CPR
  • MED
Performance
Chamber type
Chevron
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Quiescent current
300μA
Polarity
L1 & L2 are polarity sensitive
Environmental
Humidity Note
no condensation or icing
