XP95 I.S. Heat Detector (A2S)

Name: XP95 I.S. Heat Detector (A2S)
Brand: XP95
SKU: 55000-440APO

55000-440APO

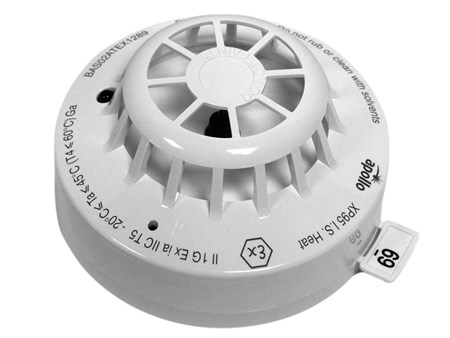

The XP95 I.S. Heat Detector is distinguishable from XP95 I.S. smoke detectors by its low air-flow resistance case which allows good contact between the sensing thermistor and the surrounding air.

Technical specification

General	Warranty 10 year Applications Dusty environments Hazardous areas Medium to large buildings Offshore platforms Refineries
Mechanical	Colour White
Conformance	Approvals BASEEFA CCS PESO (CCoE) VdS IECEx DNV.GL CPR MED ESC
Electrical	Protocol voltage 5 to 9V peak to peak Protocol voltage (max) 9V Protocol voltage (min) 5V Quiescent current 300μA Quiescent current tested at 24V dc Polarity L1 & L2 are polarity sensitive
Environmental	Humidity Note no condensation or icing Operating temperature -20 to 60°C Operating temperature (max) 60°C Operating temperature (min) -20°C Operating temperature -4 to 140°F Operating temperature (max) 140°F Operating temperature (min) -4°F
