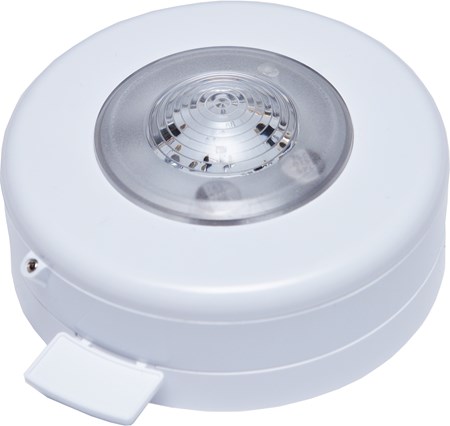

Intelligent Open-Area VID - White Body (Red Flash)

Name: Intelligent Open-Area VID - White Body (Red Flash)
Brand: Discovery
SKU: SA5501-321APO

SA5501-321APO

The Intelligent Open-Area VIDs work natively across XP95, Discovery and CoreProtocol, offering advanced functionality and performance in open areas.

Technical specification

Conformance	Approvals LPCB CPR
Electrical	Quiescent current 890μA Quiescent current tested at 24V dc Supply voltage (max) 35V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 35V dc
Mechanical	Product depth 33mm Product diameter 100mm Product depth 1.3in Product diameter 3.94in
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature (max) 55°C Operating temperature (min) -10°C Operating temperature -10 to 55°C IP rating Value IP21C Operating temperature 14 to 131°F Operating temperature (max) 131°F Operating temperature (min) 14°F
