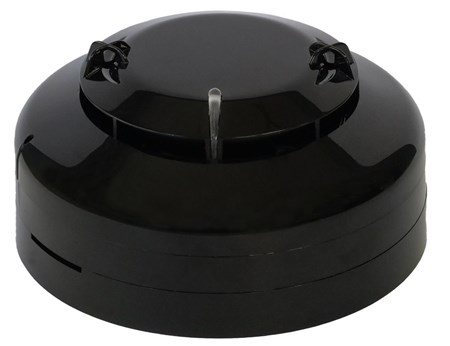

Soteria Multi-Sensor Detector (Optical/Heat) - Black

Name: Soteria Multi-Sensor Detector (Optical/Heat) - Black
Brand: Soteria
SKU: SA5100-760APO

SA5100-760APO

The Soteria Multi-Sensor Detector uses advanced optical sensing technology, PureLight, to detect smoke particles entering the chamber and is fitted with two thermistors for detecting heat. It easily discriminates against false alarm stimuli and is a great environmentally friendly alternative to ionisation detectors.

Five modes of operation for ultimate fire detection and false alarm management in a wide range of applications
Utilises digital Core Protocol communications providing a range of advanced fire detection features
A sophisticated dynamic algorithm, providing transient rejection and compensation for drift while maintaining accurate sensitivity
FasTest for quicker testing of detectors
Integrated switchable isolator

Technical specification

Mechanical	Colour Black Weight 100g Product diameter 103mm Product depth 55mm Product depth 2.17in Product diameter 4.06in
Conformance	Approvals CPR LPCB VdS BOSEC
Electrical	Protocol voltage 5 to 13V peak to peak Protocol voltage (max) 13V Protocol voltage (min) 5V Quiescent current 600μA Supply voltage (max) 35V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 35V dc
Environmental	Operating temperature -10 to 55°C Operating temperature (max) 55°C Operating temperature (min) -10°C IP rating Value IP40 Operating temperature (min) 14°F Operating temperature (max) 131°F Operating temperature 14 to 131°F
