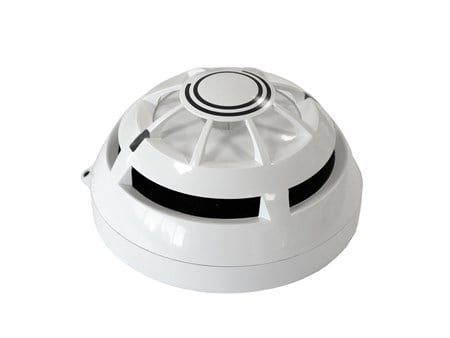

Soteria Tri-Sensor Detector (Dual Optical/Heat/CO)

SA5100-810APO

The Soteria Tri-Sensor Detector (Dual Optical/Heat/CO) uses advanced dual optical sensing technology to accurately detect smoke particles and discriminate against false alarm stimuli. It has a centrally located heat thermistor, along with a CO sensor giving you three methods of detection.

Technical specification
Mechanical
Colour
White
Weight
105g
Product length
55mm
Product diameter
103mm
Product length
2.17in
Product diameter
4.06in
Conformance
Approvals
  • LPCB
  • CPR
Electrical
Quiescent current
600μA
Quiescent current tested at
24V dc
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Environmental
Humidity (max)
90% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 90% (no condensation or icing)
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
IP rating Value
IP40
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
