Soteria Dimension Optical Smoke Detector - Black

FL5100-660APO

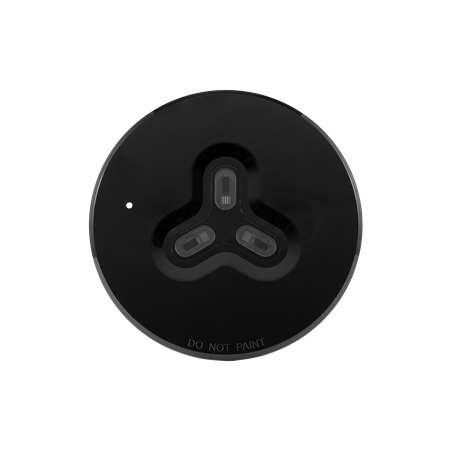

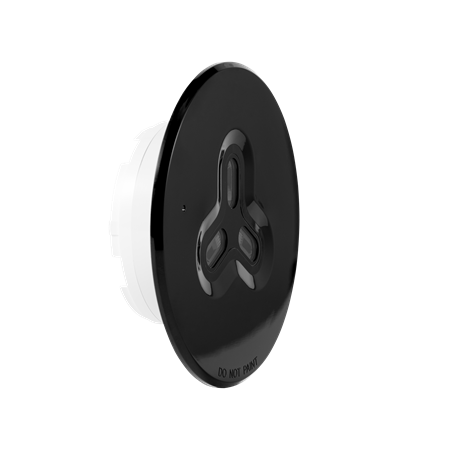

The innovative design of the Soteria Dimension Optical Detector differs from standard fire detectors, with its chamberless and flush mounted design.

Technical specification
General
Warranty
10 year
Applications
  • Bedrooms
  • Cafes
  • Escape routes
  • Hotels
  • Restaurants
  • Retail
  • B&Bs/guest houses
  • Offices
  • University campuses
Fire Type
Slow burning, smouldering fires
Mechanical
Colour
Black
Finish
Gloss
Sensor configuration
Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier.
Weight
95g
Materials housing
Polycarbonate
Materials terminals
Tin plated stainless steel
Product diameter
100mm
Detection principle
Photo-electric light scattering.
Product diameter
3.94in
Conformance
Standards
  • EN 54-7
  • EN 54-17
Approvals
  • LPCB
  • CPR
Performance
Analogue value nominal
23
Analogue value (- tolerance)
0
Analogue value (+ tolerance)
4
Analogue value
23 +4/-0
Alarm level analogue value
55
Chamber type
PureLight
Electrical
Protocol voltage
5 to 13V peak to peak
Protocol voltage (max)
13V
Protocol voltage (min)
5V
Power-up surge current
0.56mA
Status indicator - Alarm
Red
Status indicator - Fault
Flashing yellow
Quiescent current
350μA
Quiescent current tested at
24V dc
Terminal functions L2
+L2 Loop in & out positive
Terminal functions L1 in
-L1 in Loop (isolated) negative
Terminal functions L2 out
-L1 out Loop (isolated) negative
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity sensitive
Status indicator - Isolate
Yellow
Status indicator - Poll
Green
Sampling frequency
Once per second
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP44
Effect of wind speed
None
Wind speed test
Tested up to 10m/s
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
Downloads

This page uses Javascript you will need to switch on Javascript to view the page.

Approvals

This page uses Javascript you will need to switch on Javascript to view the page.

Accessories

Soteria Dimension Backbox

FL5000-200APO

The Soteria Dimension Mounting Box is moulded from white flame-retardant polycarbonate. Positions for either side or top cable entry are marked on the outside of the Mounting Box to ensure correct cable positioning. An arrow has been placed on the rim to assist in correct orientation of the detector. Placing the Mounting Box in the correct orientation in the installation aperture, it is secured into position by screwing down the self-aligning fixing tabs.
