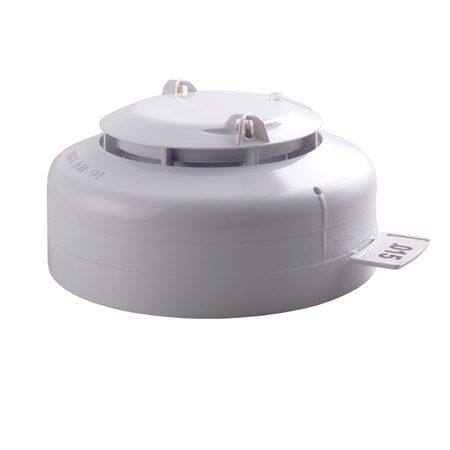

Soteria Heat Detector - Non-Isolating

Name: Soteria Heat Detector - Non-Isolating
Brand: Soteria
SKU: SA5000-400APO

This product is now obsolete and is replaced with the Soteria Heat Detector

SA5000-400APO

The Soteria Heat Detector features two heat sensors located laterally to ensure accurate heat detection in all orientations.

Eight response modes for a wide range of application temperatures
Utilises digital Core Protocol communications providing a range of advanced fire detection features
A sophisticated dynamic algorithm, providing transient rejection and compensation for drift while maintaining accurate sensitivity
FasTest for quicker testing of detectors

Technical specification

General	Warranty 10 year Applications Car parks/loading bays Warehouses
Performance	Heat classification A1R A2R A2S BR BS CR CS
Mechanical	Colour White Finish Gloss Sensor configuration Dual exposed heat sensing thermistors. Weight 90g Materials housing Polycarbonate Materials terminals Tin plated stainless steel Product diameter 100mm Detection principle Temperature sensitive resistance. Product diameter 3.94in
Conformance	Standards EN 54-5 Approvals LPCB CPR
Electrical	Protocol voltage (min) 5V Protocol voltage (max) 13V Protocol voltage 5 to 13V peak to peak Power-up surge current 0.56mA Status indicator - Alarm Red Status indicator - Fault Flashing yellow Quiescent current 350μA Quiescent current tested at 24V dc Terminal functions L2 +L2 Loop in & out positive Terminal functions L1 in -L1 in Loop (isolated) negative Terminal functions L2 out -L1 out Loop (isolated) negative Terminal functions +R +R Remote indicator positive connection Terminal functions -R -R Remote indicator negative connection Polarity L1 & L2 are polarity sensitive Status indicator - Isolate Yellow Status indicator - Poll Green
Environmental	Humidity (min) 0% RH Humidity (max) 95% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature (min) -40°C Operating temperature (max) 70°C Operating temperature -40 to 70°C IP rating Value IP54 Operating temperature -40 to 158°F Operating temperature (max) 158°F Operating temperature (min) -40°F
