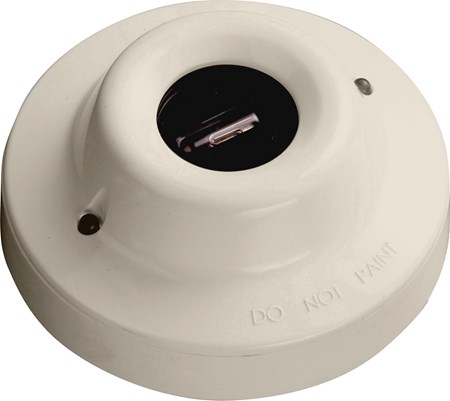

Series 65 Flame Detector (UV) - Base Mounted

55000-025APO

The Series 65 Flame Detector (UV) is designed to protect enclosed indoor areas where open flaming fires may be expected. The detector has a fast-acting response to flames up to 25m away and is equipped with a single UV sensor with a narrow spectral response in order to discriminate between flames and most spurious sources of radiation.

Technical specification
General
Warranty
3 year
Applications
  • Restaurants
  • Retail
  • Small to medium buildings
Mechanical
Colour
White
Conformance
Standards
EN 54-10
Approvals
  • CPR
  • LPCB
Electrical
Quiescent current
550μA
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
Storage temperature (max)
-40°C
Storage temperature (min)
95°C
Storage temperature
95 to -40°C
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
