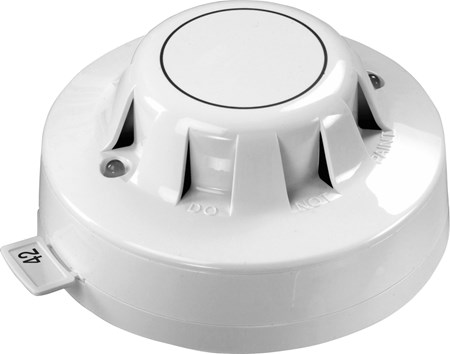

Discovery Optical Smoke Detector

Name: Discovery Optical Smoke Detector
Brand: Discovery
SKU: 58000-600APO

58000-600APO

The Discovery Optical Smoke Detector are high-specification devices using the light scatter principle to quickly detect fire while effectively managing false alarms.

Reliable fire detection in areas with a very wide temperature range from -40°C to +70°C
Five operating modes suitable for a range of applications where unique response behaviour is required
Drift compensation to ensure constant sensitivity
Ideal for accommodation decks, passages and escape routes

Technical specification

General	Warranty 10 year Applications Bedrooms Escape routes Hospitals Hotels Offices University campuses Medium to large buildings Restaurants Cafes Care homes HMOs Listed buildings Retail Small to medium buildings Warehouses Fire Type Slow burning, smouldering fires
Mechanical	Colour White Sensor configuration Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. Weight 105g Materials housing Polycarbonate Materials terminals Nickel plated stainless steel Product length 42mm Product diameter 100mm Detection principle Photo-electric light scattering. Product length 1.65in Product diameter 3.94in
Conformance	Standards EN 54-7 Approvals SBSC BOSEC FG VdS LPCB CPR
Performance	Analogue value nominal 23 Analogue value (- tolerance) 0 Analogue value (+ tolerance) 4 Analogue value 23 +4/-0 Alarm level analogue value 55 Chamber type Chevron
Electrical	Protocol voltage 5 to 9V peak to peak Protocol voltage (max) 9V Protocol voltage (min) 5V Power-up surge current 1mA Status indicator - Alarm Red Quiescent current 440μA Quiescent current tested at 24V dc Supply voltage (max) 28V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 28V dc Terminal functions +R +R Remote indicator positive connection Terminal functions -R -R Remote indicator negative connection Polarity L1 & L2 are polarity insensitive Sampling frequency Once per second
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature -40 to 70°C Operating temperature (max) 70°C Operating temperature (min) -40°C Operating temperature -40 to 158°F Operating temperature (max) 158°F Operating temperature (min) -40°F
