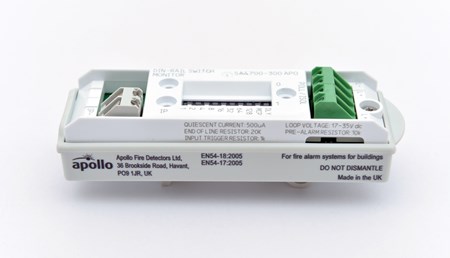

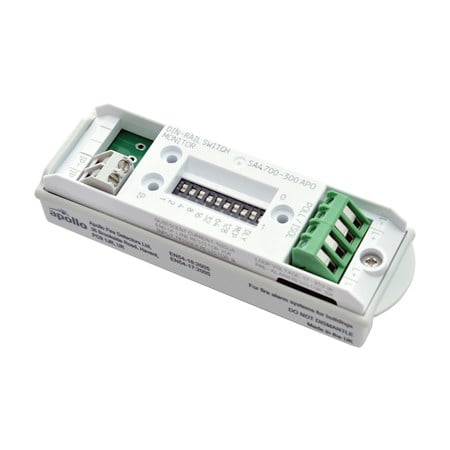

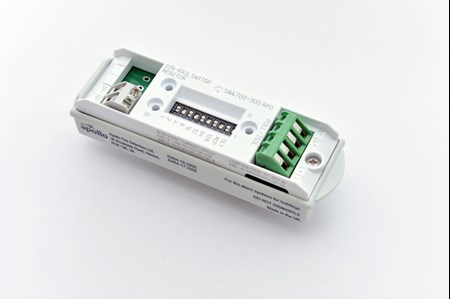

Intelligent DIN-Rail Switch Monitor Module

SA4700-300APO

The Intelligent DIN-Rail Switch Monitor Module is used to monitor one or more single pole, volt free contacts connected on a single pair of cables and report status to fire control panel.

Technical specification
General
Warranty
10 year
Mechanical
Colour
White
Weight
43.5g
Product length
33mm
Product width
102mm
Product depth
33mm
Product length
1.3in
Product width
4.02in
Product depth
1.3in
Conformance
Standards
  • EN 54-17
  • EN 54-18
Approvals
  • FG
  • SBSC
  • LPCB
  • BOSEC
  • VdS
  • CPR
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
13V
Protocol voltage
5 to 13V peak to peak
Quiescent current
500μA
Quiescent current tested at
24V dc
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
