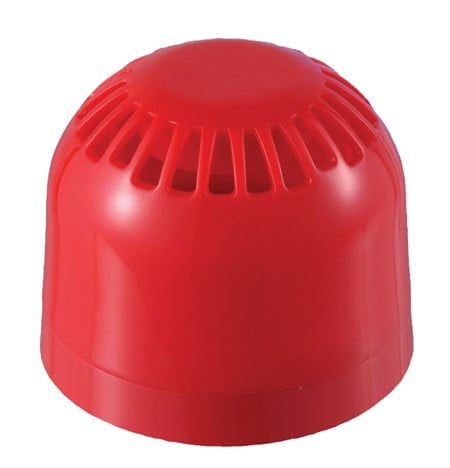

Conventional Open-Area Sounder - Red Body

Name: Conventional Open-Area Sounder - Red Body
Brand: Orbis
SKU: 29600-322

29600-322

The Conventional Open-Area Sounder is a conventional sounder which makes use of the TimeSaver Base resulting in a faster and more reliable installation.

For use with conventional systems
A choice of 32 tones including all the major international standards
Simple ‘First Fix’ installation
Volume control - typical 8dB

Technical specification

General	Warranty 10 year
Performance	Maximum sound output tone 106dB (A)
Mechanical	Colour Red Materials housing Polycarbonate Product depth 66mm Product diameter 100mm Number of cable gland entries 2 Cable gland entries size 20mm Product depth 2.6in Product diameter 3.94in
Conformance	Standards EN 54-3
Electrical	Supply voltage (min) 9V dc Supply voltage (max) 60V dc Supply voltage (Vmin-Vmax) 9 to 60V dc
Environmental	Operating temperature (max) 70°C Operating temperature (min) -25°C Operating temperature -25 to 70°C Operating temperature -13 to 158°F Operating temperature (max) 158°F Operating temperature (min) -13°F
