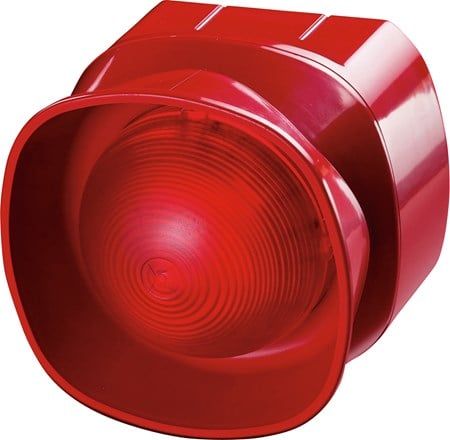

XP95 Open-Area Multi-Tone Sounder VID - Red Body (Red Flash) - Isolating

Name: XP95 Open-Area Multi-Tone Sounder VID - Red Body (Red Flash) - Isolating
Brand: Discovery
SKU: 55000-293APO

55000-293APO

The XP95 Open-Area Multi-Tone Sounder VID is designed for use in indoor open areas and can be connected to any Discovery or XP95 system.

Technical specification

General	Warranty 10 year
Performance	Maximum sound output tone 100dB (A) Selectable volume(s) 92dB (A) 100dB (A)
Mechanical	Colour Red Product length 105mm Product width 105mm Product depth 90mm Weight 290g Product length 4.13in Product width 4.13in Product depth 3.54in
Conformance	Approvals CPR
Electrical	Power-up surge current 1.2mA Maximum power-up time <1 second Quiescent current 330μA Quiescent current tested at 24V dc Supply voltage (max) 28V dc Supply voltage (min) 18V dc Supply voltage (Vmin-Vmax) 18 to 28V dc
Environmental	Operating temperature -10 to 55°C Operating temperature (max) 55°C Operating temperature (min) -10°C IP rating Value IP21C Operating temperature 14 to 131°F Operating temperature (max) 131°F Operating temperature (min) 14°F
