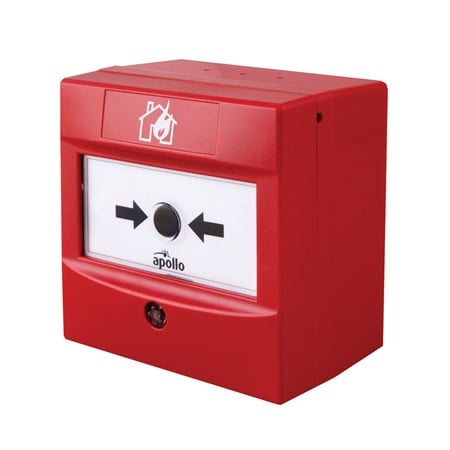

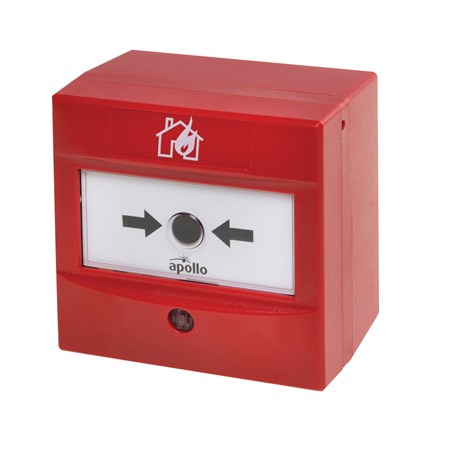

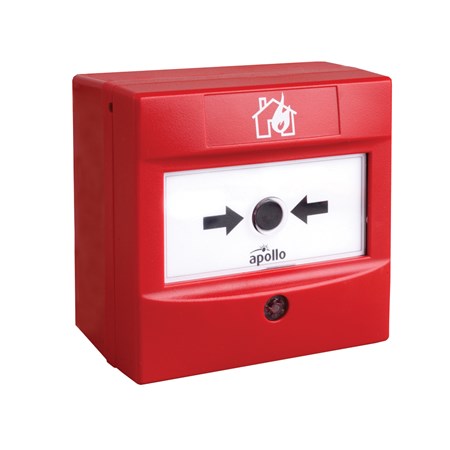

Intelligent Manual Call Point

Name: Intelligent Manual Call Point
Brand: Discovery
SKU: SA5900-908APO

SA5900-908APO

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

Technical specification

General	Warranty 10 year
Mechanical	Colour Red Weight 180g Materials housing Polycarbonate Product length 90mm Product width 90mm Product depth 63mm Key type Apollo Manal Call Point reset key Product length 3.54in Product width 3.54in Product depth 2.48in
Conformance	Standards EN 54-11 EN 54-17 Approvals SBSC VdS FG LPCB BOSEC CPR
Performance	Analogue value nominal 16 Alarm level analogue value 64 Fault level analogue value 4 Type A Operating element Resettable element Action Single
Electrical	Protocol voltage (max) 13V Protocol voltage (min) 5V Protocol voltage 5 to 13V peak to peak Power-up surge current 1mA Maximum power-up time 1 second Status indicator - Alarm Red Status indicator - Fault Yellow Status indicator - Isolate Yellow Status indicator - Poll Flashing green Quiescent current 100μA Quiescent current tested at 24V dc Supply voltage (max) 35V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 35V dc Polarity L1 & L2 are polarity sensitive
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity 0% to 95% (no condensation or icing) Humidity Note no condensation or icing Operating temperature (min) -40°C Operating temperature (max) 70°C Operating temperature -40 to 70°C IP rating Value IP44 Operating temperature -40 to 158°F Operating temperature (max) 158°F Operating temperature (min) -40°F
