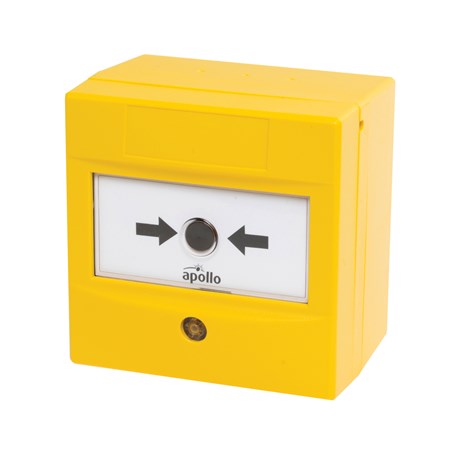

Intelligent Manual Call Point - Yellow

SA5900-904APO

The Manual Call Point is commonly used to manually control extinguishant release.

Technical specification
General
Warranty
10 year
Mechanical
Colour
Yellow
Weight
180g
Materials housing
Polycarbonate
Product length
90mm
Product width
90mm
Product depth
63mm
Key type
Apollo Manal Call Point reset key
Product length
3.54in
Product width
3.54in
Product depth
2.48in
Performance
Analogue value nominal
16
Alarm level analogue value
64
Fault level analogue value
4
Type
A
Operating element
Resettable element
Action
Single
Electrical
Protocol voltage (max)
13V
Protocol voltage (min)
5V
Protocol voltage
5 to 13V peak to peak
Power-up surge current
1mA
Maximum power-up time
1 second
Status indicator - Alarm
Red
Status indicator - Fault
Yellow
Status indicator - Isolate
Yellow
Status indicator - Poll
Flashing green
Quiescent current
100μA
Quiescent current tested at
24V dc
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Polarity
L1 & L2 are polarity sensitive
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (min)
-40°C
Operating temperature (max)
70°C
Operating temperature
-40 to 70°C
IP rating Value
IP44
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
