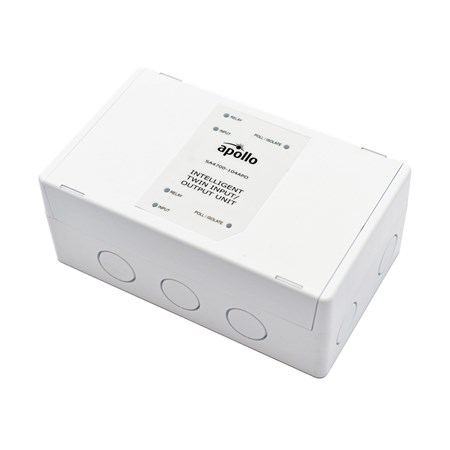

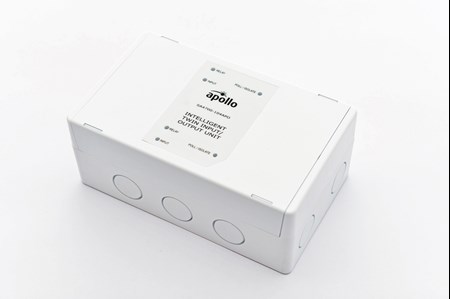

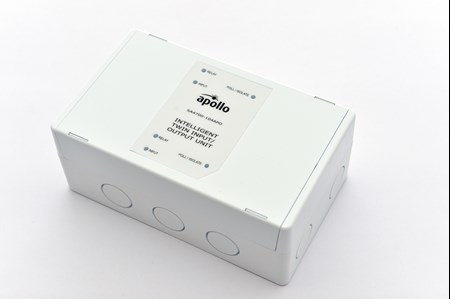

Intelligent Input/Output Module (Twin)

Name: Intelligent Input/Output Module (Twin)
Brand: Discovery
SKU: SA4700-104APO

SA4700-104APO

The Intelligent Input/Output Module provides the function of two Input/Output Modules to monitor single pole, volt free contact inputs and control relay output contacts.

EN 54-17 & EN 54-18 Certified
Meets BS 7273-4 failsafe requirements
Ergonomic design for ease of wiring and faster installation
Suitable for semi flush or surface mounting
XP95, Discovery and CoreProtocol compatible

Technical specification

General	Warranty 10 year
Mechanical	Colour White Weight 275.6g Product length 60mm Product width 150mm Product depth 90mm Relay output contact rating 1A Relay output rating tested at 30V ac Product length 2.36in Product width 5.91in Product depth 3.54in
Conformance	Standards EN 54-17 EN 54-18 Approvals FG LPCB SBSC BOSEC VdS CPR
Electrical	Protocol voltage (min) 5V Protocol voltage (max) 13V Protocol voltage 5 to 13V peak to peak Quiescent current 500μA Quiescent current tested at 24V dc Supply voltage (max) 35V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 35V dc
Environmental	Humidity 0% to 95% (no condensation or icing) Humidity Note no condensation or icing Humidity (max) 95% RH Humidity (min) 0% RH Operating temperature -40 to 70°C Operating temperature (max) 70°C Operating temperature (min) -40°C IP rating Value IP52 Operating temperature -40 to 158°F Operating temperature (max) 158°F Operating temperature (min) -40°F
