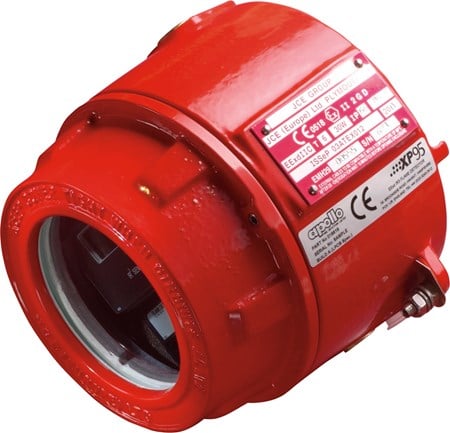

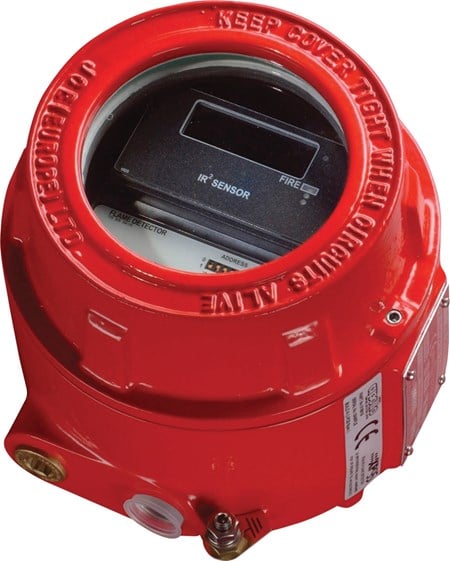

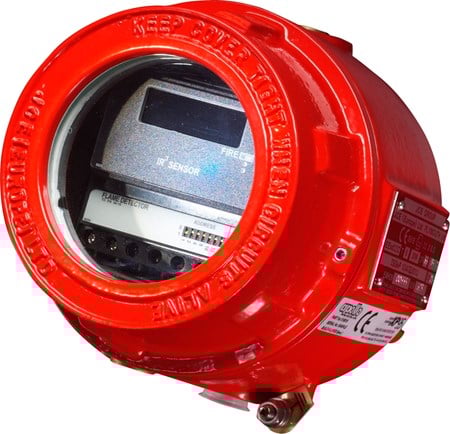

XP95 Exd Flame Detector (IR3) - Flameproof

55000-021APO

The XP95 Exd Flame Detector (IR3) is designed to protect areas where open flaming fires may be expected. It is sensitive to low frequency, flickering infra-red radiation emitted by flames during combustion.

Technical specification
General
Warranty
3 year
Mechanical
Colour
Red
Weight
2500g
Materials housing
Copper Free Aluminium
Product width
146mm
Product depth
137mm
Product width
5.75in
Product depth
5.39in
Conformance
Approvals
  • BASEEFA
  • CPR
  • LPCB
  • IECEx
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Storage temperature (max)
65°C
Storage temperature (min)
-20°C
Storage temperature
-20 to 65°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
